oli-pal R robotic palletitising system
Our oli-pal R relies on a robotic solution and thus offers full flexibility to meet your palletising requirement. The cells can be expanded with additional pallet magazines, layer pad magazines or additional conveyor technology if required. The concept is based on a modular design and can thus be flexibly adapted to the respective requirements.
The complete construction on base plates enables a quick and uncomplicated installation.
Our robots are suitable for:
- American cases
- trays with / without lids
- buckets
- bags
- cans
- shrink-wrapped items
- any type of pallet or box pallet
- etc.
Well thought out down to the last detail!
Our robots offer:
- pallets fed semi or fully automatically
- extendable via pallet magazine, interlayer magazine
- precise positioning via servo drives
- any pallet pattern can be realised
- palletising schemes can be created by customers
- trouble-free processing via sucker or gripper pick-up
- ideal addition to final packaging lines
- requires little floor space
- short installation phase
- requires little maintenance

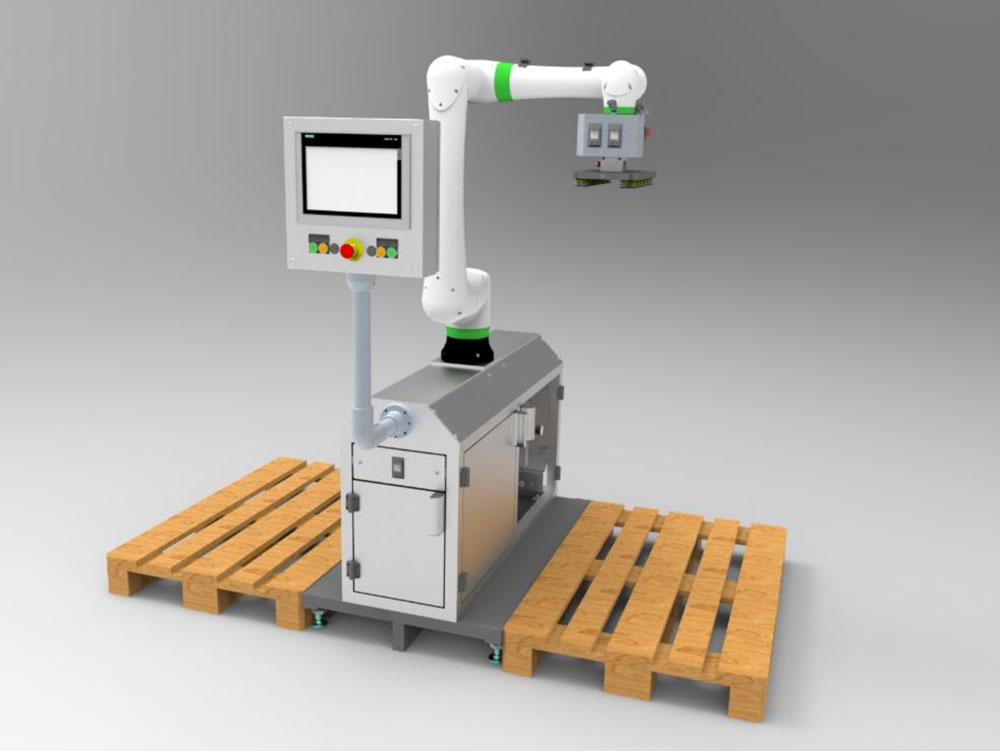

oli-pal AR Duplex Cobot
Compact palletising cell – Palletising without safety fence
Highlights:
- collaborative palletising robot – palletising without safety fence enclosure
- compact footprint – minimal space requirement
- with two palletising stations – palletising without interruption for pallet changes
- ideal addition for end-of-line packaging lines
- requires little maintenance

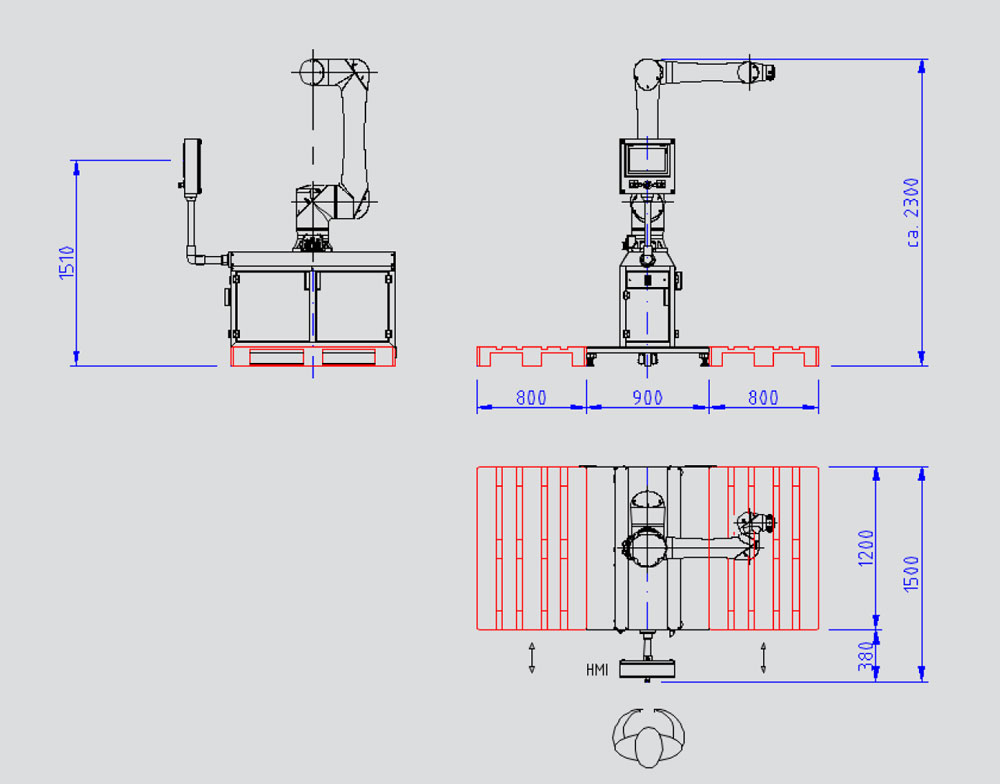

Layout:
Technical Data:
- Products: Cartons, wrap-around cartons, products suitable for vacuum handling and stacking
- Format range: L 100–400 mm, W 100–400 mm, H 100–400 mm
- Other formats on Request
- Product weight: max. 10 kg
- Output: up to approx. 6 movements/min
- Pallet size: Standard pallets 800 x 1200 mm, 1000 x 1200 mm
- Other pallets on request
- Control system: SIEMENS S7-1500 PLC with colour touchscreen
- Robot controller: Fanuc R30iB
- Cobot: Fanuc
